P. I. V. (Positively Infinitely Variable)

The durable alloy steel drive chain features a unique design. Chain links contains packs of hardened steel slats which slide freely from side to side to conform with grooves in the wheel faces. This unique self forming tooth capability results in positive no slip transmission and long chain life

* All Steel Chains * Through Hardened & Tempered
*  Import Substitute *  High Speed Performance

Applications of P. I. V.

 1] Textile Industries : (a) Steuters  (b) Blow Room Machinery
    (c) Processing Machinery  (d) Texturising Textile Machinery
 2] Packaging & Corrugating Industries : (a) Rotary Sheet Cutters
 3] Food Processing Industries : (a) Biscuit making machine (b) Stacking Machine
 4] Glass Industry
 5] Paper and Pulp Industry
 6] Coal and Mining Equipments
 7] Rubber Machinery
 8] Rotary Printing Machinery
 9] Chemical & Pharmaceuticals
 10] Cement Plants
 11] Oil Refineries
 12] Thermal Power Plants

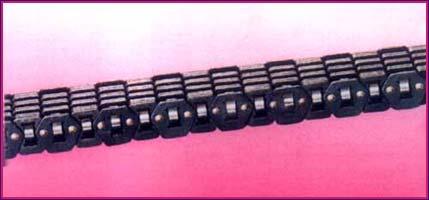

RB, RC Series Chains

P. I. V. Roller Chains used on infinitely Variable R-Transmission. In addition to the long service life of the chain, this also achieves very smooth operation of the transmission and favourable material stressing.

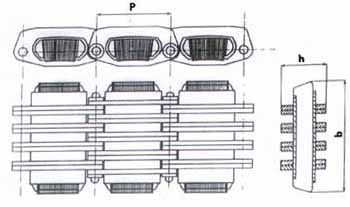

DIMENSION OF P.I.V. CHAIN

All steel chain through hardened & tempered import substitute
 high speeds performance

ALL THE DIMENSIONS ARE IN M.M.

TYPES	PITCH (p)	WIDTH (b)
A 0	18.6	25.0
A 1	19.5	32.5
A 2	24.6	37.4
A 3	28.3	44.0
A 4	35.9	61.0
A 5	35.9	72.5
A 6	44.6	81.0

DIMENSION OF RB, RC - SERIES P.I.V. CHAIN

ALL THE DIMENSIONS ARE IN M.M.

TYPES	PITCH (p)	WIDTH (w)	HEIGHT (h)
RB 0	10	12	9.3
RB 1	12.1	16	12.1
RB 2	12.5	16	17
RB 3	13.5	24.6	18
RB 4	14.2	31	20.8
RB 5	16.3	31	22
