Liquid Filling Machine

VOLUMETRIC LIQUID FILLING MACHINE : This unit is used to fill liquids in pharmaceuticals. Beverages, chemicals cosmetic industries. All the contact parts are manufactured from S.S. 304\316 quality as per product requirement. The drive mechanism is enclosed in a mild steel, frame cladded with stainless steel.

Machine is manufactured for various fill volumes and in models having 1,2,4,6&8 filling heads. Separate syringes for fills smaller than the machine ordered and which can be fitted on the same drive are also available.

Outputs of the varies according to the machine size and the viscosity of the material to be filled. Also available automatic model with conveyor

Volume Setting :- in mechanical model volume is set by manually adjusting the setting screw mounted on the setting block

Salient Feature :-

1) Increased / More out put
2) Reduced man power
3) No bottle no fill for safety
4) Easy bottle changeover
5) High accuracy
6) Linear yet compact system
7) Suitable for any container
8) Can be directly attached to the online capping machine
9) No dripping
10) Special attachment for pesticides

Request a quote

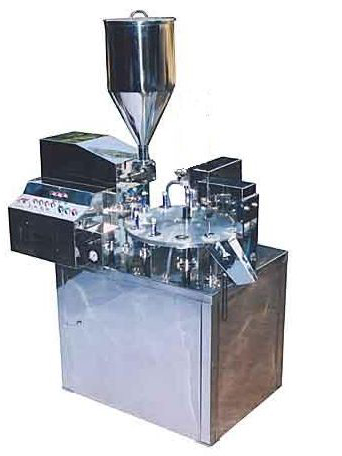

Automatic Tube Filling Machine

Features :-

1) Available in single and double head model..

2) The tube filling, sealing and coding machine is sturdy compact in design and simple in operation. It consists
    of an aluminium-rotating disc with interchangeable tube holding sockets for different tube sizes.

3) The multiple filling station is made of SS Block, fitted with pneumatic device to control tailing. No tube no
fill process switches. (Electronic counter provided if required, not included in basic machine)

4) SS plain hopper of 25 kg. Capacity. Non-return value fitted below the SS main filling block, Volume tracks
    for fine adjustments and weight accuracy.(Jacketted hopper along with stirrer provided optional.)

5) 1 HP motor, 440 V., 1440 rpm. 3 phase AC motor, Gearbox of 30:1 ratio. Electrical panel box with circuit
    breakers. No tube no fill process switch.

Others Model :-

1) Fully automatic linear tube filling, sealing and coding machine

2) Automatic tube filling, sealing and coding machine for Lami/plastic tubes.

3) Automatic tube filling, sealing and coding machine for Aluminium tubes.

4) All in one(for plastic, lami & Al.) Automatic tube filling, sealing and coding machine.

Request a quote

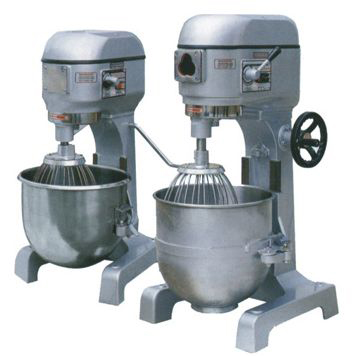

Planetary Mixer

This equipment is basically a mixing assembly where the agitation pattern is of the planetary nature The beater or the agitation assembly rotate around itself as well as travel in a circle in the bowl thereby achieving intimate mixing. Because of special design feature of shifting the mass is uniformly and intimately mixed.
Planetary mixer complete with S.S. removable bowl, S.S. blade having variable 3 different speeds and one neutral speed suitable for mixing and beating for viscous and pasty materials. The machine is designed for practical and easy operation and running is noiseless very easy to operate with minimum of attention, the machine is provided with a hand drive worm gear arrangement to lift and lower the bowl and is complete with 1phase/3 phase 400/440 volts, 50 cycles electric motor

Features :-

1) Available in all grade of carbon steel and stainless steel

2) Optional Teflon coated internals for food and sticky material application

3) Jacketed construction available for steam and cooling application

4) Available in working capacities of 5 liter to 500 liter

5) Mixing bowl is made portable to facilitate comfortable transporting , washing etc.

6) Various types of beaters can be provided for different materials

7) Motorized , manual lifting and sliding arrangement possible for bowl

8) Flame proof construction optional

Request a quote

S.S. Conveyor

Salient Features

1. AVAILABLE IN VARIOUS TYPES BELT, CHAIN OR ROLLER CONVEYOR.

2. Available as per required speed, length, height and width
3. Structure made of SS 304/ SS 304 square pipe with matt finished / painted
4. Table top is made of SS 304, 16 Gauge sheet with matt-finished
5. Conveyor belt is supplied with A.C. Frequency drive.
6. Imported PVC endless belt
