WORKPLUS ENGINEERING

Manufacturers of :

    Special Purpose Machines
  • CNC Drilling & Tapping Machines
  • Screen Printing Machines
  • Cutting Machines
  • Mini Half cut Machines
  • File Creasing Machines

  • Material Handling System
  • Gravity Roller Conveyor with Swing Gate
  • Slat Chain Conveyors
  • Pneumatic Slide


:: Products ::

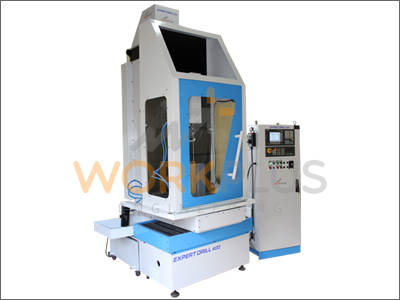

CNC Drilling & Tapping Machines : Expertdrill 400

Application :
This machine is designed for drilling cooling hole in pet bottle mould.
We can drill hole up to 400 mm with this machine.
We can do drilling upto 19 mm.

Specifications :
• X - Y table size : 650 x 450 mm.
• X axis stroke : 400 mm.
• Y axis stroke : 300 mm.
• Z axis stroke : 1000 mm.
• Controller : Siemens 808D advance
• All motors and drives : Siemens make
• Spindle RPM : 3000
• Spindle nose : BT- 40

CNC Drilling & Tapping Machines : Expertdrill 400

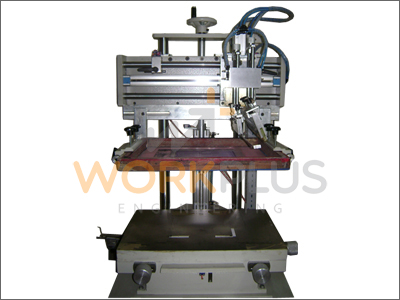

Screen Printing Machines

Application :
To do screen printing.

Specifications :
• Paper size : 450 x 350 mm.
• Z opening : 300 mm.
• Control : PLC
• Movement : With Pneumatic cylinders and Guide rods.

Screen Printing Machines

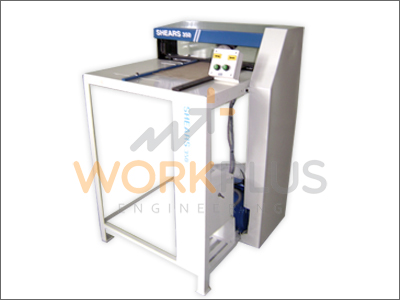

Cutting Machines

Application :
Machine is designed to cut silicon or rubber material.
with this machine we can cut paper, sticker also.

Specifications :
• Length of machine 2 meter.
• Forward and reverse direction cutting happens.
• Drive : Chain drive with geared motor.
• Cutting material is hold from both side with two plates to cut properly
and moved up down with pneumatic cylinder.
• Cutting is done by blades.

Cutting Machines

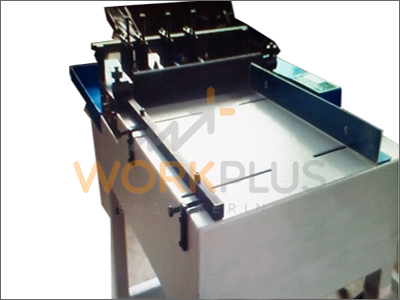

Mini Half cut Machines

Application :
Machine is designed to cut only sticker paper.
With this machine we can cut only syicker paper
and below that paper will not be cut.

Specifications :
• Paper Width : 450 mm.
• Adjustable blade up to 25 mm.
• Drive : With geared motor.

Mini Half cut Machines

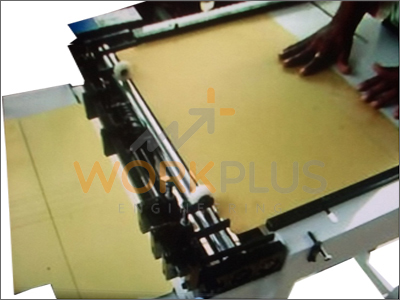

File Creasing Machines

Application :
To do file Creasing of Files.

Specifications :
• Width : 80 mm.
• We can do at a time four or five whichever is required
• Drive : With geared Motor and Roller

File Creasing Machines




Roller Pressing Machines

Application :
Machine is designed to Press Silicon or Rubber Material at joint.
with this Machine we can give desired pressure on Roller with precision regulator.

Specifications :
• Length of Machine 2 Meter.
• Forward and Reverse direction Pressing happens.
• Drive : Chain drive with Geared Motor.
• Pressure to Roller is given by Pneumatic Cylinder and it is controlled
   by Precision Regulator.







:: Contact us ::

WORKPLUS ENGINEERING

Office : B - 401, 6th Sense, Pune - Satara Road, Katraj, Pune - 411046 Maharashtra India.

Tel. No. : +91-20-24361053

Mobile : 9423743431 / 9881403915



Website : www.workplusengineering.com
