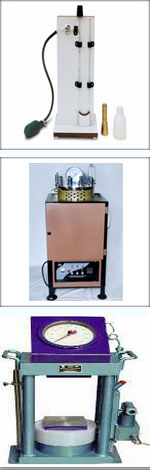

Cement and Concrete Testing Equipments |
 |
-- Blaine Air Permeability Test App.
-- Cement Auto Clave
-- Compression Testing Machine-500KN
-- Curing Compound Mould
-- Flow Table
-- Gauging Trowel
-- Heat of Hydration of Cement
-- Humidifier
-- Humidity Oven
-- Jolting Machine
-- Le Chatlier Mould
-- Length Comparator
-- Mortar Mixer
-- Mortar Penetrometer
-- Pulverizer Lab Type
-- Reflectance Meter
-- Standard Spatula
-- Tensile (Briquette) Testing Machine
-- Vicat Needle App.
-- Compaction Factor App.
-- Compression Testing Machine Digital
-- Compress meter
-- Concrete Penetrometer
|
-- Concrete Permeability App.
-- Concrete Test Hammer
-- Concrete Thermometer
-- Cylindrical Mould
-- Extensometer
-- Hudraulic Jack
-- Tile Abrasion Tester
-- Tile Flexural Tile Testing
-- Vee Bee Consistometer
-- Vibrating Table
-- Volume Change App.
-- Cube Mould1
-- Compression Testing Machine Channel
-- Concrete Mixer - Lab Type
-- Flexural Testing Machine
-- Slump Test App.
-- Vibrating Machine
-- Compression Testing Machine Elec. Oper
-- Compression Testing Machine H.O.
-- Accelerated Curing Tank
-- Air Enterainment Meter
-- Ball Mill |
|
| |
Cement Auto Clave
After it has set, cement must not undergo any appreciable expansion, which could disrupt a mortar or concrete. This property of soundness is tested by subjecting the set cement to boiling in water or to high-pressure steam. Unsoundness can arise from the presence in the cement of too much free magnesia or hard-burned free lime. This method covers determination of the autoclave expansion of Portland cement by means of a test of neat cement paste specimens, 25.4 X 25.4 X 285.8mm, which are moist cured for 24 hours +/- 1-1/2 hours and then exposed to action of steam under specified pressure for 3 hours. The rate at which pressure is increased in the beginning the test and released in the test are specified. Linear expansion is measured by micrometer comparator. |
 |
Compression Testing Machine-500KN
The machine embodies an hydraulic system designed to meet the requirements of Indian standards Specification 516-1959 for compression tests on cement mortar cubes up to 7.06 cms. |
 |
|
Flow Table
The consistency and workability of concrete is a very important factor and is strictly connected to the water/cement ratio, to the effect of admixtures and finally to the strength and quality of concrete. Suitable for concrete mixes of high and very high workability. To perform this test, a sample is placed on a metal surface which is then raised and dropped through a known height. |
 |
|
Humidifier
EIE-2602, Humidifier is based on the rotating disc splash plate principle. Produces super fine particles which become part of the atmosphere, reaching every corner of the room, resulting cool mist, which does not condense when obstructed and remains suspended in the air, thus achieving humidity up to 95 % RH in enclosed areas. This unit is capable of atomizing up to 3 ltr of water in an hour at full evaporation in the driest possible ambient conditions. An optional arrangement can also be provided to control the humidity which automatically cuts off and put on the unit as required (at an extra cost) |
 |
|
| |
| |
