MEASURING DEVICES |
 |
Time Totalizer (Model DC-9045TT)
¤ Panel cutout 90 x 45 mm
¤ Six (6) digit display, 8mm
¤ Supply-110V/230V, 50Hz, 5 VA/12 to 24 V DC,
100 mA
¤ Reset, (remote optional)
¤ Range -
Hours and tenth Minutes and tenth Seconds an tenth
¤ Memory-Last count 72 hours |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
 |
Time Interval Meter (Model DC-9045 TIM)
¤ Panel cutout 90 x 45 mm
¤ Six (6) digit display, 8mm LED
¤ Supply-110V/230V, 50 Hz, 5VA/12 to 24 V DC,
100 mA
¤ Reset, (remote optional)
Range
Hours and tenth Minutes and tenth Seconds and tenth
¤ Memory-Last count 72 hours. |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
| |
 |
Revolution Counter ( Model DC-9045RPM)
¤ Panel cutout 90 x 45 mm
¤ Six (6) digit display, 8mm LED
¤ Supply-110 V/230V, 50Hz, 5VA/12 to 24 V
DC.100mA
¤ Reset, (remote optional)
Input
¤ Open Collector-6000 cps
¤ Contact-20 cps
¤ Memory- Last count 72 hours |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
 |
RPM Counter (Model DC-9045 RPM)
¤ Panel cutout 90 x 45 mm
¤ Six (6) digit display, 8mm LED
¤ Supply-110V/230V, 50Hz,
5 VA/12 to 24 V DC, 100 mA
¤ Input type
¤ Non contact - Open Collector |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
 |
Rate Meter (Model DC-9045 RM)
¤ Panel cutout 90 x 45 mm
¤ Six (6) digit display, 8mm LED
¤ Supply-110V/230V,50 Hz,
5VA/12 to 24 V DC, 100mA.
¤ Input type- Non contact-Open Collector
¤ Range-liter/meter (per)
Hour Minute Second |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
 |
Width Counter (ModelDC-9045WC)
¤ Panel cutout 90 x 45 mm
¤ Six (6) digit display, 8mm LED
¤ Supply-110 V/230 V, 50 Hz, 5VA/12 to
24 V DC ,100 mA
¤ Reset, (remote optional)
¤ Input- Open Collector-6000 cps |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
 |
Preset Time Totalizer (Model DC-9090PRTT)
¤ Panel cutout 90x90 mm
¤ Six (6)digit display,8mm LED
¤ Supply-110V/230V, 50 Hz,5 VA/12 to 24
VDC,100 mA.
¤ Preset in SET mode for each digit
¤ Range -
Hours and tenth Minutes and tenth Seconds and tenth
¤ Output- 2 pairs of potential free contacts
(230v/6 A, 50 Hz, open collector)
¤ Memory - Last count 72 hours |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
|
Preset Timer (Model DC-9090PRT)
¤ Panel cutout 90 x 90 mm.
¤ Six (6) digit display, 8mm LED
¤ Supply -110V/230V,50Hz, 5VA/12 to
24 V DC,100 mA
¤ Preset in SET mode for each digit up to
4 levels
¤ Reset, (remote optional)
¤ Range -
Hours and tenth Minutes and tenth Seconds and tenth
¤ Output-up to 8 pairs of potential free contacts
( 230V/6A, 50 Hz, open collector)
¤ Memory- Last count 72 hours. |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
|
Preset Counter (Model DC-9090PRC)
¤ Panel cutout 90 x 90 mm
¤ Six (6) digit display, 8mm LED
¤ Supply -110V/230V, 50 Hz, 5 VA/12 to 24 V,
DC, 100 mA.
¤ Reset, ( remote optional)
¤ Preset in SET mode for each digit up to 4 levels
¤ Direction - Auto /Manual
¤ Input- Open collector- 6000 cps
¤ Output- up to 8 pair of potential free contact
(230V/ 6 A, 50 Hz, open collector)
¤ Memory-Last count 72 hours. |
| |
TOTALIZER COUNTER FOR FLOWMETERS [ ALSO CALLED REGISTER ] |
 |
Count -CR5
It is five digit counter specially made for low cost, hand winding machines. It comes with left/right lever reset & both side drive shaft extension along with top going or top coming drive direction.
¤ Overall size (mm) : L-166, W-66, H-70.
¤ Mounting holes : 4 hole, 5mm X-98.5 mm, Y-16.5 mm |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
|
SR5
A professional grade 5 digit counter with all stainless steel shafting, self lubricating bearing and gears. It comes with left / right lever reset & both side drive shaft extension along with top going or top coming drive direction .
¤ Overall size (mm) : L-166, W-66, H-70.
¤ Mounting holes : 4 hole, 5mm X-98.5 mm, Y-16.5 mm |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
 |
R400
It is a 6 digit compact & sturdy revolution counter with self lubricating bearing. It is light weight & strong with quick reset facility.
¤ Overall size (mm) : L-110, W-46, H-40.
¤ Mounting holes : 2 slots of 4 X 7 mm at 70 mm |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
 |
CR6
6 digit revolution counter to facilitate enhanced counting capacity upto 999999 revolutions.
Quick lever reset and different ratios like 10:1, 5:1, 1:2, 1:3, 1:5, 1:10 or custom built
¤ Overall size (mm) : L-166, W-66, H-70.
¤ Mounting holes : 4 hole, 5mm X-98.5 mm, Y-16.5 mm |
| |
MECHANICAL REVOLUTION COUNTER |
|
| Dimensions |
190 X 122 X 138 height |
| Mounting |
Base with 4 slots of 13.5 x 6.5 at 179 X 96 mm |
| |
COUNTER |
| No of digits |
3+1 [ 4+1 optional] |
| Digit Size |
20 mm with 1/10 marking on first digit |
| Reset facility |
Quick Lever [ Knob optional] |
| Ratio |
1:2 [ other ratios 1:2. 5, 1:4 etc optional]
6.35 mm Dia Shaft at bottom [ side drive optional] |
| Drive Revolution |
Clock wise. Or Anti clock wise |
| |
TOTALIZER |
| No of digits |
7+1 |
| Digit Size |
4 mm with 1/10 marking on first digit |
| Reset facility |
No Rest Facility – gives cumulative total |
| Ratio |
Same as counter unit |
| Revolution |
Same as counter unit Also available NON Reversible Totalizer |
| Construction |
Housed in sturdy Aluminum Die cast housing, With detachable Lever for Resetting and manufactured using all professional grade components |
| Application |
For Mechanical Farm Fuel Pumps
Flow Meter metering units – [ ALSO AVAILABLE HOUSED IN METALLIC SHELL FOR 1TO 1 REPLACEMENT OF VEEDER ROOT METER REGISTER SERIES 7887 ] |
| Equivalent |
Veeder Root 7887 series mechanical register |
|
|
Count -CR5
It is five digit counter specially made for low cost, hand winding machines. It comes with left/right lever reset & both side drive shaft extension along with top going or top coming drive direction.
¤ Overall size (mm) : L-166, W-66, H-70.
¤ Mounting holes : 4 hole, 5mm X-98.5 mm, Y-16.5 mm |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
|
SR5
A professional grade 5 digit counter with all stainless steel shafting, self lubricating bearing and gears. It comes with left / right lever reset & both side drive shaft extension along with top going or top coming drive direction .
¤ Overall size (mm) : L-166, W-66, H-70.
¤ Mounting holes : 4 hole, 5mm X-98.5 mm, Y-16.5 mm |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
|
R400
It is a 6 digit compact & sturdy revolution counter with self lubricating bearing. It is light weight & strong with quick reset facility.
¤ Overall size (mm) : L-110, W-46, H-40.
¤ Mounting holes : 2 slots of 4 X 7 mm at 70 mm |
| :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: |
|
CR6
6 digit revolution counter to facilitate enhanced counting capacity upto 999999 revolutions.
Quick lever reset and different ratios like 10:1, 5:1, 1:2, 1:3, 1:5, 1:10 or custom built
¤ Overall size (mm) : L-166, W-66, H-70.
¤ Mounting holes : 4 hole, 5mm X-98.5 mm, Y-16.5 mm |
| |

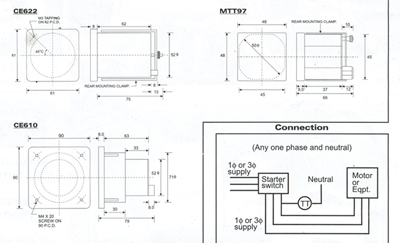

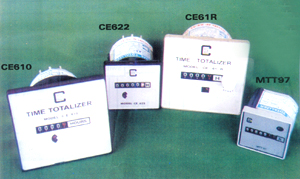

TIME TOTALIZER or HOUR METER |
Specifications |
| Operating Voltage |
230VAC+ 10 %, 50 Hz Other Voltages Up To 440 V AC On Request |
| Counting Range |
CE 610
0 To 9999.9 |
CE 610 622
0 To 9999.9 |
MTT 97
0 To 9999.99 |
| Power Consumption |
CE 610 4 VA |
CE 622 4 VA |
MTT 97 2 VA |
| Operating Temp. Range |
-200C to + 700C |
| Duty Cycle |
Continuous |
| Voltage Proof |
2 KV RMS For 1 Minute |
| Mounting |
Flush Mounting |
| Lubrication |
Self Lubricating |
| Height Of Figures |
CE 610 4mm |
CE 622 4 mm |
MTT 97 4mm |
| Weight (aprox.) |
CE 610
220 gms |
CE 622
180 gms |
MTT 97
100 gms |
| Applications |
Generating sets Air Compressors, Circuit Breakers , Power Plants, Textile Machines, Paper Industries, Packing machnies, Strip Packing Machines, Suger Industries, Ordinance Factories,Laboratories, Power & Irrigation Dept., Rectifiers, Chemical Processes, Radio & TV stations Air Conditioners, Computers, Machine Tools, Business machines, Moulding Machines, Elevators, Electric Furances |
|
|
Model |
Counting range/Metering capacity |
Least count |
CE610M |
0 to 9999.9 Minutes, 5 Digits |
0.1 Minute |
CE610MZ |
0 to 99999 Minutes, 5 Digits |
1 Minute |
CE610H |
0 to 9999.9 Hours, 5 Digits |
1 Hour |
CE610HZ |
0 To 9999.9 Hours, 5 Digits (With reset facility) |
0.1 Hour |
CE 61R* |
0 to 99999.9 Hours, 5 Digits ( With reset facility) |
0.1 Hour |
CE622 |
0 to 99999.9 Hours, 6 Digits |
0.1 Hours |
MTT97 |
0 to 99999.99 Hours, 7 Digits |
0.01 Hour |
|
CE TIME TOTALIZER incorporate a positive self-starting sychronous motor for high acuancy which drives counter through robustly designed worm wheel gear arrangement and ensures accurate summation of 'On Time' of any machine, equipment or circuit.
It is an ideal tool for cost accountants to evalute production v/s actual running time, fuel consumptionand lobour cost of the machine. Itindcates when preventive maintenace or replacement of components is use.
The Totalizer can not be reset to zero externally there by ruling out the possibility oftampering with the recorded time. Even the 'Reset' Totalizer isprovided with the 'DETACHABLE KEY' to ensure safety from unauthorizedacess to the reset mechanism.
The counter retrns to zero autoatically after completing full countering range e.g. 9999.9 to 0000.0
REMARKS
The reset model has a detechable knob provided on front facia for resetting all figures to zero. (projection 15 mm)
The reset type Time may lag behind for 2/3 digits on the first figure wheel de to backlash of the spring & the performance of the Time Totalizer should not be studied and compared on the basis of reading first digts.
2. Please specify voltage/frequency if other than 230v AC, 50 Hz. |
|
SHUT HEIGHT INDICATORS |
 |
Die height Counter
It is yet another counter to the power press industry for fast and safe production. This is Indian substitute for KOREAN model AH - 200 |
| |
|
PRESET COUNTER - CRP5 |
 |
Suitable for monitoring exact produced quantity in the applications like fan winding machines or any other process where predetermined production quantity is important. Counters counts down word from the preset number which on reaching to the preset Value passes from 00000 to 99999; & operates a change over switch which is used to stop in the machine or actuating an annunciation thus by preventing excess unwanted production. L-166 w -107, H-70 Mounting holes-4 nos. 5mm dia x-98.5 mm, y-16.5mm
|
| |
|
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
|
|
|
|
