Worm Drive Clamps :- |
|
|

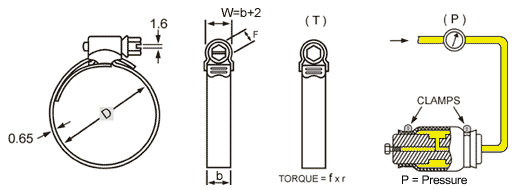

General Brief Specifications : |
|
|
The table covers general purpose commercial applications.
However, specifications are developed to suit particular customer requirements and P. No. applications as O. E.
Clamps may be supplied with various band widths and higher strengths as felt necessary for applications. |
|
|
|
|
|
|
|
|
|
|
|
ORDERING INFORMATION : |
|
|
For smoother services the following points may please be noted by the customer while ordering : |
Top |
|
- Clamp DIA means Max Dia of the clamp to suit the OUTSIDE Dia of the mounting hose.Use of mere term Hose Dia (if means INNER Dia) is confusive and should be avoided.
- The customer should go through all above literature and decide the necessary type of Jupiter design for his use.
- While enquiring, customer may call for Jupiter Questionnaire to decide or design specific clamps for P.No. applications. Accordingly prototype drawing shall be prepared and submitted for Customer's convenience & approval.
- Customer is requested to attend Jupiter's Receipt of Order Form for amendment if any.
- E-mail correspondence should be complete with full address, P.P., Communication Nos. and other specific details of the sender.
|
|
|
|
|
|

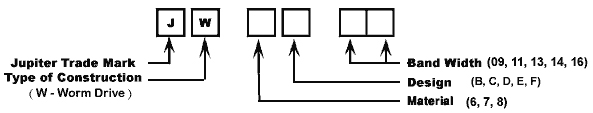

Identification Code Nos, Illustrations & samples : |
Top |
|
In order to differentiate the applications / designs, Jupiter clamps generally have their own identification type codes. |
|
|
|
|
|
|
|
|
|
|
|
|
T - Bolt Clamps :- |
Top |
|
Salient Features and benefits of Jupiter T - Bolt Clamps :- |
|
|
|
Wider Bandwidth : Wider bandwidth helps in distribution of total radial clamping pressure more uniformly and equally than narrow width or wire clamp |
Vibration-Proofness : Use of self locking nyloc nut or spring helps to avoid re-opening because of vibrations. |
Corrosion Resistant : S.S. Band with optional S. S. T-Bolt imparts corrosion resistant Quality and advantage of re-use and failproofness after use. |
Strength : Use of High tensile S.S. material in spite of its thin guage helps to secure safety of the euipments and it's longer life. |
Light Weight : For the equivalent strength of Jupiter T-Bolt clamps other design out of M.S. will necessitate bigger weight, which may not be permissible or desirable. |
Clamping of Metallic inserts : Clamping of splitted, tubular sheet riser such as Air Cleaner over it's metallic tube insert is possible by Jupiter T-Bolt clamp due to it's inherited quality of flexibility and above features. |
|
|
|
|
|
|

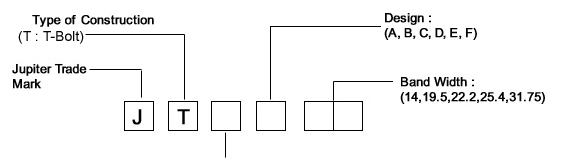

Identification Code Nos. (Type) : |
Top |
|
In order to differentiate the applications/designs, Jupiter clamps generally have their own identification type codes. |
|
|
|
|
|
|
|
|
Material Code |
Item |
Band/Bridge |
T-guide/Nut |
T-bolt |
6 |
AISI
201/202 |
M.S.
(Zinc Plated) |
Carbon Steel
(Zinc Plated) |
7 |
AISI 304 |
AISI 304 |
AISI 304/
400 Series |
8 |
AISI 316 |
AISI 316 |
AISI 316 |
|
|
|
|
|
|
T - Bolt Ordering Information : |
Top |
|
For smoother services the following points may please be noted by the customer while ordering. |
|
|
- Clamp DIA means Max OUTSIDE Dia of the mounting hose i.e. DN here. Use of mere term 'Hose Dia' (if it means INNER Dia) is confusive and should be avoided.
- The customer should go through all above literature and decide the necessary type of Jupiter design for his use. OR may call for Jupiter Questionnaire to facilitate to decide or design specific clamps for P.No. applications. Accordingly prototype drawing shall be prepared and submitted for customer's conveniece.
- Customer is requested to attend Jupiter's 'Receipt of order' form for validation and ammendment if any.
- E-mail corrospondence should be complete with full address, P.P., Communication Nos. and other specific details of the sender.
|
|
|
|
|
|
T - Bolt Illustrations : |
Top |
|
|
|
|
TYPE : JT 6A 20 Standard Clamp |
|
|
|
This flat shoe or bridge clamp is widely used for general applications |
|
|
|
|
|
|
|
|
|
TYPE : JT 6B 20 Clamp with Formed Bridge |
|
|
|
Clamp with formed bridge generally used for soft surfaces like silicon hose connections and special applications. |
|
|
|
|
|
|
|
Top |
|
TYPE : JT 6C 20 Quick Opening Clamp |
|
|
|
This construction helps to avoid complete opening of nut and facilitates easy mounting or dis-mounting. |
|
|
|
|
|
|
|
|
|
TYPE : JT 6D 20 Snap Action Clamp |
|
|
|
This is designed to have facility of re-opening and re-clamping of assembly required frequently for re-cleaning, re-inspection and re-servicing etc. |
|
|
|
|
|
|
|
|
|
|
|
|
|
V - Band Coupling Clamps :- |
Top |
|
|
|
|
|
Solution for Vibration & Leak-Proof Flanged joints With JUPITER DESIGN technology
Objective :-
V-Band Coupling is used to join Piping, Tubing or various Gas or liquid tracks or closers, separators or enclosures. |
|
|
|
|
|
|
|
|
Working :- |
|
|
From the above Assembly figure it can be seen that the tapered inners of the V-sectors are mounted over their respective matching tapers of the pair of flanges of the jointing pipes.The tangential pull FT created by applying torque by turn of nut causes uniform radial force Fr all around. This causes wedging action force Fw along the tapered area of the flange at its perpendicular. The FW in turn has its resolved component force Fx along the axis of the flanges or pipes which effectively serves in firm and uniform fitting of the two flanges along their faces. |
|
|
|
|
|
|
|
|
|
|
|
Salient Features and Benefits of Jupiter V - Band Clamps : |
Top |
|
Vibration-Proof : |
|
|
Jupiter clamps due to their virtue of light weight and convenience are ideal for joint to conduct output gases from vibrating assemblies at one end towards the stationary output system at the other. |
|
|
|
|
Light Weight :
Use of sheet metal for all components makes the overall design lighter in weight-Solution to replace heavy multiple bolted conventional flanges. |
|
|
|
|
|
Time Saving and Convenient :
Reduces assembly time and cost due to ease of operating single nut instead of odd positioned many. |
|
|
|
|
|
|
Frequent Clamping :
The most convenient for sub-assemblies requiring frequent latching and unlatching for inspection, cleaning and replacements (See illustrations) |
|
|
|
|
|

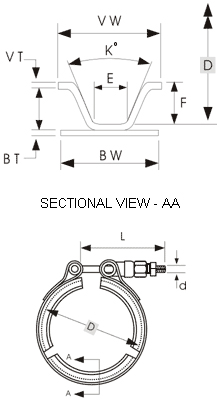

Input Data - Selection Guide : |
|
|
What User has to provide is the complete input data vide requirement of Jupiter Questionnaire and / or the general dimensions in the range indicated below. This starts the Jupiter's Design and development process for user's fail-proof and dependable V-Band Coupling Joint and dependable V- Band coupling Joint. |
|
|
|
Top |
|
Item of Specification |
The Developed Specifications vary |
from (mm) |
Upto (mm) |
D |
Clamp Dia |
50 |
400 or more |
BW |
Band Width |
12.7 |
32 |
BT |
Band Thickness |
0.6 |
2 |
VW |
Vee Width |
12.7 |
35 |
VT |
Vee Thickness |
0.65 |
2.5 |
K° |
Included Angle |
30 |
60 |
d |
Dia of T-Bolt |
6.35 |
10 |
L |
Length of T-Bolt |
55 |
115 |
|
Other Miscellaneous feedbacks |
Please fill in Jupiter Questionnaire for design input and provide data as much complete as possible |
|
|
|
|
|
|
|
|

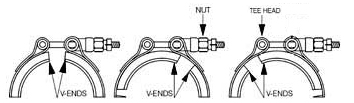

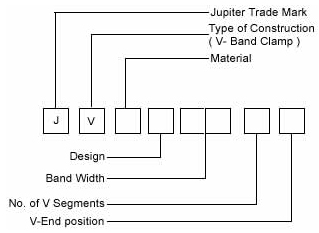

Identification Codes : |
Top |
|
In order to differentiate the applications or designs Jupiter Clamps generally have their own identification type code as under - |
|
|
|
|
|
|
|
|
ORDERING INFORMATION : |
Top |
|
For smoother services the following points may please be noted by the customer while ordering. |
|
|
- The customer should go through all above literature and decide the necessary type of Jupiter design for his use.
- While inquiring, customer may call for Jupiter Questionnaire to decide or design specific clamps for P.No. applications. Accordingly prototype drawing shall be prepared and submitted for Customer's convenience & approval.
- Customer is requested to attend Jupiter's Receipt Of Order Form for amendment if any
- E-mail correspondence should be complete with full address, P.P., Communication Nos. and other specific details of the sender.
|
|
|
|
|
|
|
|
|
|
Pipe Clips :- |
Top |
|
|
|
|
Special Features : |
|
|
|
|
|
|
|
|
|
Clips are supplied as shown in the sketches |
|
Simple and Quick to assemble |
|
vibration damping property due to eccentric clamping |
|
Special reinforcement possible by providing extra washer spot welded at the screw fixing area. |
|
Pipe clips with sleeve or coating at the pipe holding area offer flexible fastening at the same time preventing penetration of band edges in the pipe or the item it is holding and clamping. |
|
Clips can be supplied with nut and bolts fitted. |
|
|
|
|
|
|

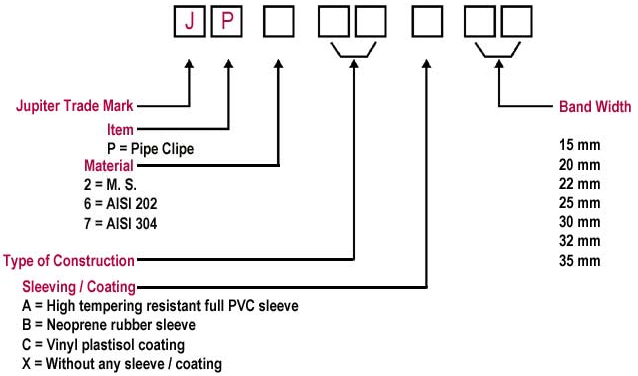

Identification Code : |
Top |
|
Identification Code Nos. ( Type ) |
|
|
|
|
|
|
|
|
General Guidence : |
Top |
|
For Selecting Band Section |
|
|
|
|
15.0 |
0.8 |
20.0 |
0.8 |
20.0 |
1.2 |
22.0 |
0.8 |
22.0 |
1.2 |
25.0 |
0.8 |
25.0 |
1.2 |
25.0 |
1.5 |
30.0 |
1.2 |
30.0 |
1.5 |
32.0 |
1.2 |
32.0 |
1.5 |
35.0 |
1.2 |
35.0 |
1.5 |
35.0 |
2.0 |
|
|
|
|
|
|
Illustrations : |
